How to Size a Goat Hay Feeder for 2, 5, or 10 Goats

Could an undersized hay feeder be costing a small herd half its feed and sparking daily fights? This guide provides clear numeric rules of thumb and ready calculations for 2, 5, and 10 goats. Goat owners will learn feeding-space ranges (12–24 in per goat) and intake estimates (2–4% body weight). The guide uses a conservative 4 lb/day example to show daily totals: 2 goats = 8 lb, 5 = 20 lb, 10 = 40 lb.

Related reading: goat feeders that cut waste and injuries | feeding area layout to reduce aggression

Shop our recommended feeders: Slow Feeder Hay Net | Premium Hay Feeder

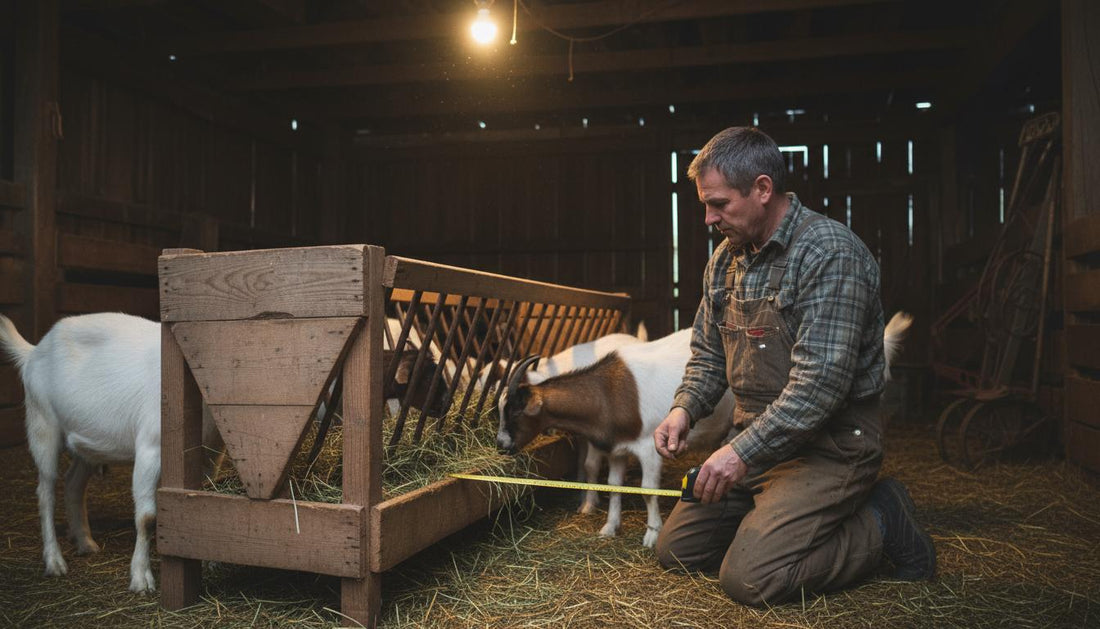

1 How to Size a Goat Hay Feeder for 2, 5, or 10 Goats Easily

Two core rules of thumb determine feeder length and storage: linear feeding space per goat and daily intake expressed as a percent of body weight.

Plan 12–24 inches of linear access per adult goat, with 12–18 inches acceptable for small or hornless animals and 18–24 inches recommended for larger or horned animals.

Estimate hay intake at 2–4% of body weight per day; for example, a 100‑lb goat will typically eat about 2–4 lb of hay daily.

Breeders can use 4 lb/day per goat as a conservative working number for capacity calculations.

Using 4 lb/day, two goats need 8 lb/day, five goats need 20 lb/day, and ten goats need 40 lb/day.

Use those daily totals to size trough volume and to calculate how many bales or pounds to keep between refills.

Choose the lower end of the spacing and intake ranges for small, calm, hornless herds with low competition.

Select the upper end for larger, competitive, or horned animals to minimize crowding, pushing, and drag‑out.

Measure actual consumption for a week after installation and adjust feeder length or storage if the herd consistently eats more than the design numbers.

• Inches per goat: Min 12 in | Comfortable 18 in | Extra room 24 in
• Lbs/day per goat: 2–4% of body weight (use 4 lb/day per goat for conservative planning)
• Sample daily totals (at 4 lb/day): 2 goats = 8 lb/day; 5 goats = 20 lb/day; 10 goats = 40 lb/day
• Refill planning window: keep 2–7 days of hay on hand depending on refill frequency and access constraints

How to Calculate Feeding Space per Goat and Feeder Length for 2, 5, or 10 Goats

Feeder length (inches) = number of goats × inches per goat.

Choose 12 in for calm, small, hornless herds, 18 in for a comfortable standard, and 24 in when animals are large, horned, or aggressive; the chosen spacing directly controls crowding, pushing, and drag‑out.

Feeding-slot designs use discrete openings while continuous‑rail designs provide linear access measured in inches.

Convert slots to linear inches by multiplying the number of slots by the effective opening width each animal can use (for example, five 4‑inch slots ≈ 20 inches of linear access).

1. Measure herd size (count the full‑access adults that will feed together).
2. Select inches per goat based on herd type (12 / 18 / 24).
3. Multiply goats × inches per goat = required feeder length in inches.
4. Convert inches to feet and round up to the next convenient build length or panel size.
5. Add 6–12 inches to account for posts, end panels, or a catch trough when ordering materials or cutting boards.

Herd size	Inches @ 18"/goat	Feet (rounded)
2 goats	36 in	3 ft
5 goats	90 in	7.5 ft (round to 8 ft)
10 goats	180 in	15 ft

Slot-width guidance: 3–4 in openings work for hornless goats and limit drag‑out, while 6–8 in openings or open‑top rails are safer for horned animals.

Allow extra length for anchor posts, end panels, or a catch trough by adding 6–12 in to the calculated length; plan the final cut or panel purchase to include that buffer.

How to Size Feeder Capacity and Storage: Bales, Pounds, and Days on Hand

Convert animal-level intake (lb/day) into weekly needs and days‑on‑hand to size feeder storage.
Using a conservative 4 lb/day per adult goat, multiply goats × 4 lb to get daily herd demand, then multiply by 7 for weekly demand.
Examples: 2 goats = 8 lb/day (56 lb/week); 5 goats = 20 lb/day (140 lb/week); 10 goats = 40 lb/day (280 lb/week).
Plan to keep 2–7 days of hay on hand depending on refill frequency, delivery cadence, and access to backup bales.

Translate that weight into bales for stocking and feeder capacity.
One small square bale (~40–50 lb) will supply five goats about 2–3 days at 4 lb/day.
For multi‑week feeding, round bales are efficient: a 1,000 lb round bale will feed 10 goats (40 lb/day) for roughly 25 days.
Use bale counts to size feeder trough volume and on‑site storage rather than guessing by bale count alone.

Adjust calculations after measuring actual intake and considering hay quality.
Poorer‑quality or low‑digestibility hay raises required pounds per goat, while high‑quality hay can lower it.
Weigh or record daily disappearance for one week, then size future feeder volume and reorder cadence to the observed average.

• Small square bale — 40–50 lb: ~2–3 days for 5 goats; ~5–6 days for 2 goats; ~1–1.5 days for 10 goats.
• Small round bale — 600 lb: ~30 days for 5 goats; ~75 days for 2 goats; ~15 days for 10 goats.
• Large round bale — 1,000 lb: ~50 days for 5 goats; ~125 days for 2 goats; ~25 days for 10 goats.
• Large square bale — 800–1,000 lb: similar to large round — 40–50 days for 5 goats at 4 lb/day.
• On‑site buffer: keep 2–7 days of hay on hand based on refill logistics and weather exposure.

Bale type	Typical weight (lb)	Days for 5 goats at 4 lb/day
Small square	40–50	2–2.5 days
Small round	600	30 days
Large round	1,000	50 days

For volumetric planning, convert bale weight to cubic feet if preferred: one small square bale (~40–50 lb) is roughly 3–4 cubic feet of loosely fluffed hay depending on compression, so multiply cubic feet per bale by the number of bales needed to check feeder trough and shelter capacity.

1 How to Size a Goat Hay Feeder for 2, 5, or 10 Goats Easily

Length is linear feeding access measured along the front rail.

Depth is the trough distance from the front rail to the backboard.

Height is the distance from the floor to the top rail or lip.

These three dimensions determine animal comfort, bale capacity, and waste control.

2 goats — compact rack for daily feeding and short buffer bales.

This footprint provides comfortable access for two adults and room for one small square bale inside the trough.

Add 6–12 inches total for end posts when cutting or ordering parts and leave a 4–6 inch inward lip at the front to reduce drag‑out.

• Dimensions: 36 in × 24 in × 30 in (L × D × H)
• Recommended trough depth: 8–12 in
• Bar/slot spacing: hornless 3–4 in | horned 6–8 in
• Days on hand: 1–3 days per small square bale

5 goats — medium-length rack that balances access and on‑site storage.

This configuration gives each goat about 18 in of linear access at the mid recommendation and holds the equivalent of 2–3 small square bales for short resupply cycles.

When building, allow an extra 6–12 in for end panels and secure posts to prevent tipping under load.

• Dimensions: 90–96 in × 24–30 in × 36 in (L × D × H)
• Recommended trough depth: 10 in (use deeper if goats root at the back)
• Bar/slot spacing: hornless 3–4 in | horned 6–8 in
• Days on hand: ~2–4 days using 2–3 small bales

10 goats — long trough or round‑bale ring for continuous winter feeding.

Use a 15 ft linear rack for multiple-access feeding or a ring sized for a 4'×4' or 4'×5' round bale when multi‑week capacity is needed.

For long racks, add 6–12 in per end and include a 4–6 in inward lip to limit drag‑out; pick slot spacing based on horn status.

• Dimensions: 180 in × 40 in × 42 in (L × D × H)
• Recommended trough depth: 12 in (deeper catch pans under heavy flow)
• Bar/slot spacing: hornless 3–4 in | horned 6–8 in
• Days on hand: multiple small bales or a single round bale supplying several weeks

Herd size	Length (in)	Depth (in)	Height (in)	Capacity (small bales)
2 goats	36	24	30	1–2
5 goats	90–96	24–30	36	2–3 (~80–150 lb)
10 goats	180	40	42	Use round bale or multiple small bales

How to Choose Materials and Parts for a Durable, Safe Hay Feeder

Wood is inexpensive and easy to work with for DIY builds, but it needs regular maintenance and will rot faster in wet, high‑traffic sites.

Metal is more durable and, when galvanized, resists rust and lasts multiple seasons with less upkeep, though upfront costs are higher for heavy‑gauge panels or welded frames.

Typical DIY material ranges: basic lumber and hardware run about $20–$150 for a small feeder, cattle panels cost $30–$90 each, and welded wire runs $10–$40 depending on gauge and roll size.

Prioritize galvanized finishes, medium‑grid welded wire or vertical slats to limit drag‑out, and hardware rated for outdoor use.

Trim and round off cut wire edges and cover exposed fasteners to prevent cuts and snagging.

Avoid thin, brittle wire and unsecured nails; pick parts with solid welds and folded edges where possible to reduce sharp points.

• 16‑ft cattle panel (cut as needed)
• 14–16 ga welded wire or 1/2–1" hardware cloth
• Galvanized screws, lag bolts, and carriage bolts
• Pressure‑treated lumber (2x4s, 2x6s) for frames and backboards
• Angle brackets, steel corner braces, and U‑bolts
• Rubber feet, ground anchors, or concrete anchors for anti‑tip stability

Material	Why pick it	Typical cost range
Cattle panel	Strong, ready‑made rails for racks and rings	$30–$90
Welded wire	Limits drag‑out and provides safe reach openings	$10–$40
Treated lumber & hardware	Affordable framing with easy repairs	$20–$150

• Inspect cut wire for sharp burrs and folded edges before purchase.
• Flex wire panels to check for thin, brittle sections that can break or poke.
• Tap and visually inspect welds or joints for loose connections and slack spots.

How to Build a DIY Goat Hay Feeder: Tools, Step-by-Step Parts List, and Measurement Templates

The project suits a beginner-to-intermediate builder with basic carpentry tools.

Expect 2–6 hours to complete a 2‑goat (36" internal) unit depending on skill and prep work.

Work outdoors or in a ventilated shop and stage all cuts and hardware before assembly.

Measurement Template and Cut List

The template targets a 36" internal width after accounting for overlapping 2x4s (subtract 1.5" per overlap).

Anchor points for side framing sit 16" up from the bottom to position the trough and allow a 6–12" elevation block under the feeder.

1. 2x4s — cut four at 36" (long top/bottom rails) and four at 34" (short side studs accounting for overlaps).
2. 2x4s — cut four at 16" for internal cross supports and anchor points.
3. Wire mesh — one panel 36" × 32" for front face; one panel 34" × 32" for each short side.
4. Plywood or backboard — one piece 36" × 32" for the rear (optional solid back).
5. Roof/top board — two pieces 43" long to overhang sides and sit flush on top rails.

Assembly Steps

1. Lay out two identical side frames using 36" top and bottom rails and 34" vertical studs; predrill and fasten with 2 screws per joint.
2. Fasten the two side frames to the rear backboard, aligning anchor points at 16" from bottom; use 3 screws at each connection for strength.
3. Install internal cross supports at 16" up from the bottom to tie the sides and resist goat pressure; secure with 2–3 screws each.
4. Attach the front wire mesh panel to the front rails, starting at one end and pulling tight before fastening every 6–8 in with galvanized screws and washers.
5. Trim mesh edges with snips and fold or hammer down any burrs; use metal flashing or wood trim to cover exposed cut wire.
6. Screw the roof/top boards across the top rails so they overhang ~1.5" per side and provide a support ledge for a simple sloped roof.
7. Add a 4x4 elevation block or two under the feeder to raise it 6–12" from ground for drainage; secure blocks with screws through the bottom rail.
8. Install an inward lip (4–6") at the front top edge to reduce drag‑out, using a 1×4 screwed to the inside of the top rail.
9. Test stability by applying lateral force and add corner braces or ground anchors if the unit rocks.
10. Apply exterior sealant or stain and allow to cure before first filling; inspect fasteners and wire after one week of use.

Part	Quantity for 2-goat feeder	Notes
2x4 lumber	8–10 pieces	See cut list; use pressure-treated for wet sites
Wire mesh (14–16 ga)	1–2 panels	Cut to front and side dimensions; fold edges
Galvanized screws	1–2 lbs	Use exterior-rated, include washers for mesh
4x4 block(s)	1–2	Elevation blocks to raise feeder 6–12"
Stain / sealant	1 quart	Protects wood in high-traffic locations

Round off or cover all wire cuts and exposed fasteners and verify no gaps allow foot trapping.

Secure the feeder to ground anchors if goats are strong pushers and recheck connections after the first week of use.

• Small (2‑goat) DIY cost estimate: $50–$150.
• Medium (5‑goat) panel or larger build estimate: $150–$500.

How to Buy vs Build a Hay Feeder: When a Ready-Made Feeder Solves Safety and Waste Issues

DIY builds save money on materials and allow custom sizing to herd needs, but they require time, tools, and basic carpentry or metalwork skills.

Typical small DIY cost ranges run about $20–$200, while material and labor gaps can produce weaker joints or sharp edges if not finished correctly.

Commercial feeders use heavy‑gauge galvanized steel and proven anti‑waste geometry, which reduces drag‑out and maintenance at higher upfront cost.

Commercial assemblies commonly run from a few hundred dollars up to $200–$1,200+ for panel systems and round‑bale rings, but they deliver longevity and lower long‑term waste.

Breeders prioritizing durability, animal safety, and minimized hay loss should favor a purpose‑built feeder when budget allows.

A ready‑made, livestock‑rated unit cuts build time, provides safer openings for horned animals, and typically returns value through reduced waste and fewer repairs.

• Time available to build versus buy.
• Access to tools and welding or carpentry skills.
• Budget: small DIY ($20–$200) vs commercial ($200–$1,200+).
• Herd size and expected wear (2 goats vs 10 goats).
• Horn status: horned animals need proven slot geometry.
• Weather exposure and corrosion risk in the site.

Option	Typical cost range	Why pick it
Build (DIY)	$20–$200 (small)	Lower upfront cost, customizable, requires tools and time
Buy (commercial)	$200–$1,200+	Galvanized, heavy gauge, anti‑waste design, lower maintenance

For a fast, durable solution that prioritizes safety and long‑term waste reduction, consider a premium livestock‑rated feeder; it suits readers who prefer ready‑made galvanized construction and less maintenance.

Quick purchase option for readers who want a heavy‑duty, low‑waste feeder now: https://www.amazon.com/dp/B0FLWKK4RG

How to Reduce Hay Waste and Keep Goats Safe: Anti-Waste Features and Safety Design

Design features that cut waste focus on containment, drainage, and controlled access.

Elevated or grated bottoms keep hay off wet ground, reducing trampling and mold growth.

Vertical‑bar or slotted fronts let goats pull individual bites while preventing whole‑fluff drag‑out.

A solid backboard prevents push‑through losses and keeps flakes inside the trough.

Feed lips or 4–6 inch inward overhangs stop goats from flicking flakes forward.

Catch pans or shallow troughs under the front rail recover loose hay for reuse.

A simple sloped roof or weather flap preserves bale quality and reduces spoilage from rain.

Safety guidance centers on spacing, rounded edges, and secure anchoring.

Slot widths of 3–4 inches work for hornless animals; 6–8 inches or open‑top rails suit horned herds.

Raise feeders 6–12 inches to prevent stepping in and to improve drainage.

Anchor heavy units with U‑bolts, pipe clamps, or concrete footings to stop tipping under load.

Provide separate low‑rail creep feeders or smaller openings for kids to avoid crowding and crushing.

Trim and fold cut wire; cover exposed fasteners to eliminate sharp contact points.

• Elevated bottom: 6–12 in off ground.
• Inward feed lip: 4–6 in to reduce drag‑out.
• Slot spacing: hornless 3–4 in | horned 6–8 in.
• Catch pan: 8–12 in deep, full width.
• Roof pitch: shallow 3:12 for runoff.
• Grated floor option: 1/2–1 in gaps.
• Anchors: U‑bolts or ground anchors rated for livestock.
• Kid access: separate 8–12 in low openings.

Feature	Recommended spec	Benefit
Elevated bottom	6–12 in	Reduces trampling and moisture spoilage
Slot spacing	3–4 in (hornless) / 6–8 in (horned)	Limits drag‑out and prevents horn entanglement
Inward overhang	4–6 in	Stops flakes being flicked forward
Roof / cover	Sloped, full‑width	Protects hay from rain and reduces spoilage
Anchoring	U‑bolts, pipe clamps, concrete footings	Prevents tipping and improves longevity

Common problems and quick fixes: excess drag‑out — add a 4–6 in inward lip and a catch pan; head‑stuck incidents — widen slots to 6–8 in or remove obstructing bars; muddy feeder area — raise unit 6–12 in and install a 2–4 in compacted gravel pad for drainage.

How to Site, Anchor, and Weather-Proof a Hay Feeder for Small Herds

Select a sheltered site that blocks prevailing wind and driving rain and provides easy access for routine refills and bale handling.

Raise the feeder 6–12 inches above wet ground to prevent moisture uptake and rot.

Install a compacted gravel pad 2–4 inches thick under the feeder to stabilize footing, improve drainage, and reduce mud buildup.

Grade the immediate area so water runs away from the feeder; a gentle slope toward a drain or grassed area prevents pooling and prolongs feeder life.

Anchor choices should match feeder weight, mobility needs, and soil type.

Use U‑bolts, pipe clamps, or T‑post attachments for semi‑mobile panels that may be moved seasonally.

Specify concrete footings or heavy ground anchors for permanent, high‑traffic installations to stop tipping under heavy push or wind load.

For portable feeders, secure with removable ground anchors or chain to a post so the unit can be relocated but stays stable during use.

Monitor anchorage points seasonally and tighten hardware after high‑wind or freeze–thaw cycles.

• U‑bolts for panel bases (galvanized).
• Pipe clamps to T‑posts for semi‑portable anchoring.
• Concrete footings or ground anchors for fixed feeders.
• Lean‑to or run‑in shelter for weather protection.
• Sloped roof pitch ~3:12 for runoff.
• Tarps with bungee cords for temporary cover and raised base

Problem	Anchoring or siting fix	Materials suggestion
Tipping under load or wind	Install concrete footings or heavy ground anchors	Concrete anchors, galvanized U‑bolts, anchor plates
Hay getting wet	Site under lean‑to or add a sloped roof; use weather flap	3:12 pitched roof, metal sheeting, exterior weather flap
Mud build‑up and trampling	Build 2–4 in gravel pad and raise feeder 6–12 in	Crushed stone 2–4 in, geotextile fabric, 4x4 elevation blocks

How to Estimate Costs, Monitor Consumption, and Adjust Feeder Size Over Time

Small feeders typically cost $20–$200 for DIY or budget buys and suit 1–3 goats or short refill cycles.
Medium solutions, including welded panels or larger DIY racks, run roughly $200–$600 and work well for 4–8 goats.
Large systems and round‑bale rings commonly exceed $600–$1,000 and pay off when feeding many animals or during heavy winter throughput.

Measure actual hay disappearance for seven consecutive days to verify design assumptions.
Weigh or estimate filled bale weights, record daily disappearance, and calculate average lb/day.
Compare measured lb/day against the design capacity and add feeder capacity or a second unit when observed consumption consistently exceeds planned numbers.

• Weigh representative bales before feeding to set a baseline weight.
• Photograph fill levels at the same time each day for visual records.
• Log daily disappearance (lb/day) for seven days and compute the average.
• Spot‑check for mold, spoilage, or wet pockets each refill.
• Resize or add feeders when measured consumption exceeds design capacity by more than 15% for two weeks.

Herd size	Design capacity (lb/day)	Suggested initial feeder capacity (lb)
2 goats	8	24 (≈3 days)
5 goats	20	60 (≈3 days)
10 goats	40	120 (≈3 days)

Cost‑optimization tip: a heavy‑duty commercial feeder that reduces waste by 10–20% can pay back its premium over a season for medium or large herds.
Example: five goats at 20 lb/day consume 140 lb/week; a 15% waste reduction saves 21 lb/week.
If hay costs $0.20/lb, that saves about $4.20/week; a $250 premium feeder pays back faster with larger herds or higher hay prices.

How to Handle Special Cases: Horned Goats, Kids, Mixed Herds, and Round Bales

Horned and hornless animals need different opening geometry to prevent entanglement and reduce drag‑out.

Hornless goats do well with vertical slots about 3–4 inches wide that limit whole‑fluff theft.

Horned animals require wider openings of 6–8 inches or open‑top rails and reinforced panels so horns cannot catch.

Choose heavy‑gauge panels or welded‑wire racks with folded edges where horns will contact metal.

Kids require lower access points and dedicated creep feeders to prevent injury and competition.

Set kid rail heights around 8–12 inches above finished floor level and provide smaller, lower openings separate from adult rails.

Design kid feeders with solid lower backboards and narrow tops so youngsters cannot climb or get trapped in ring feeders.

Round‑bale systems must match ring diameter to bale size and herd throughput.

Use heavy panels or commercial ring feeders sized for the bale diameter and include a catch trough under the ring for loose hay.

A 1,000 lb round bale feeding 10 goats at 4 lb/day supplies roughly 25 days of feed (1,000 ÷ 40 = 25).

• Separate adult and kid feeders to prevent crushing and bullying.
• Stagger feeding times to reduce peak crowding and competition.
• Use long continuous rails when mixed sizes feed together to spread animals out.
• Add 12–24 inches extra linear space for aggressive or dominant individuals.
• Supervise initial feedings after changes to spot entanglement or pushing.
• Provide multiple short feeders instead of a single choke point to reduce fights.

Observe herd behavior for seven days after any spacing or feeder change.

Adjust slot widths, rail heights, or add a second feeder if crowding, horn entrapment, or persistent bullying appears.

Final Words

Apply two core rules: provide 12–24 inches of linear feeding space per goat and plan intake at 2–4% of body weight (use 4 lb/day as a conservative working number).

The article converted those numbers to daily totals (2 goats = 8 lb; 5 goats = 20 lb; 10 goats = 40 lb), showed feeder-length math, and balanced bales versus days-on-hand.

Goat owners should pick lower spacing for small, calm or hornless herds and the upper end for large or horned animals. These practical rules guide How to Size a Goat Hay Feeder for 2, 5, or 10 Goats and make feeder planning straightforward and manageable.

Related Articles

• Square Bale Feeder Ideas: Space Saving Options for Small Barns

Our Recommended Feeders

Looking for a quality hay feeder? Goatzy offers durable, weather-resistant feeders designed for goats, sheep, and horses:

• Large Hay Feeder with Roof & Wheels — Keeps hay dry and clean, reduces waste by up to 60%. Ideal for 2–6 animals.
• Wall Mount Hay Feeder with Roof — Space-saving wall-mounted design, perfect for smaller pens and stalls.
• Goat Stand with Adjustable Headpiece — Adjustable legs and headpiece for comfortable milking and grooming.

All products ship from the US and come with a satisfaction guarantee. View all products →

FAQ

Q: How to size a goat hay feeder for 2, 5, or 10 goats?

A:
Recommendation: 12–24 in linear access per goat and 2–4% body-weight intake.
Use 4 lb/day for planning: 2=8 lb, 5=20 lb, 10=40 lb/day.

Q: How much space is needed for 10 goats?

A:
Plan 12–24 in per goat: total 120–240 in (10–20 ft).
Common design uses 18 in per goat = 180 in (15 ft).

Q: How much hay is needed for 5 goats?

A:
At 4 lb/day per goat plan 20 lb/day and 140 lb/week.
A 40–50 lb small square bale covers ~2–3 days for five goats.

Q: How high should a goat hay feeder be?

A:
Recommended rail height: adults 24–30 in.
Deeper troughs or round-bale racks 36–42 in; kid rails about 12–18 in.

Q: What size hay net is best for goats?

A:
Choose slow-feed nets with 1–2 in openings.
Hang at head height with bottom 6–12 in above ground to prevent stepping in.

Q: Can one use the same DIY plans for goat, sheep, or cattle feeders?

A:
Core rules apply; scale linear access, trough depth, and slot spacing by species and size.
Example 2-goat wooden feeder: 36"×24"×30" using 2x4 framing and wire.

Q: What materials and tools are needed to build a DIY hay feeder?

A:
Common materials: pressure-treated 2x4s, cattle panel or welded wire, galvanized screws, 4x4 blocks.
Tools: saw, drill/driver, wire snips, tape measure.

Q: How to modify feeders for horned goats, kids, or mixed herds?

A:
Slot widths: hornless 3–4 in, horned 6–8 in.
Provide separate low creep feeders for kids and add extra linear space or multiple feeders to reduce bullying.
