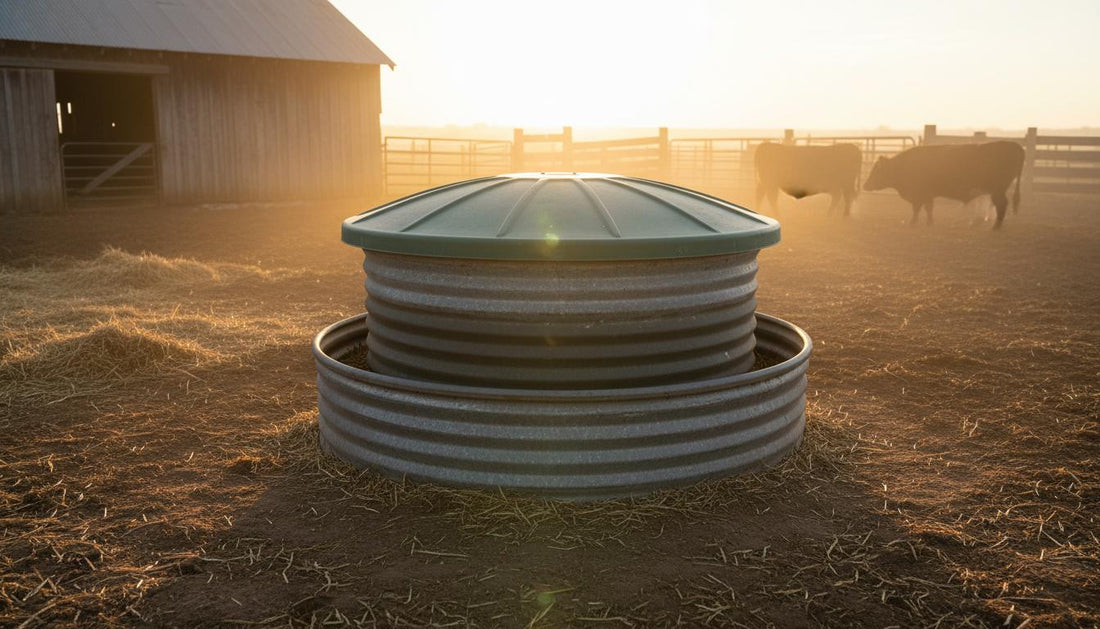

Mineral Feeders for Cattle: Weatherproof Options and DIY Fixes
Leaving mineral feeders exposed to rain and sun is one of the most costly oversights in cattle nutrition management.
This piece on Mineral Feeders for Cattle: Weatherproof Options and DIY Fixes presents concrete weatherproof choices and low-cost retrofits that stop caking, mold and corrosion.
Sealed lids, internal baffles and UV-stabilized HDPE or stainless construction translate into measurable outcomes: lower mineral loss, steadier intake rates and reduced veterinary incidents linked to contamination.
Practical guidance and step-by-step DIY plans allow managers to match feeder type to herd size and climate, cutting waste and extending equipment life.
Related reading: cattle hay feeder durability | weatherproof mineral feeders
Mineral Feeders for Cattle: Why Weatherproof Options Matter
Weatherproofing preserves mineral formulation integrity so animals receive consistent trace elements and macro minerals that support bone growth, enzyme activity and immune response.
Keeping products dry and protected reduces physical spoilage and waste, which translates to more predictable intake rates and tighter feed-cost forecasts for breeders.
Sealed, raised and baffled designs cut the most common moisture‑related losses and limit microbial contamination that can drive treatment events.
- Rain-driven caking that seizes flow
- Freeze–thaw hardening and block formation
- Mold and microbial growth in damp product
- Corrosion of metal hoppers and fasteners
- Wind blow‑out of fine loose mineral
- Rodent or wildlife contamination through unsecured lids
| Benefit | Measured effect |
|---|---|
| Reduced caking | Moisture control can cut caking by about 70–95% |
| Lower contamination | Fewer spoilage events; contamination incidents drop ~40–80% with sealed storage |
| Longer refill interval | Dry, sealed feeders extend usable interval by ~1.5–4× depending on capacity |
Material choice impacts service life: UV‑stable HDPE typically 5–10 years, galvanized steel 7–12 years and 304 stainless well past 20 years.
Selecting weatherproof cattle mineral feeders is a functional decision that reduces waste, stabilizes intake and lowers long‑term health‑related uncertainty.
Types of Mineral Feeders for Cattle: Weatherproof Options Compared
Gravity hoppers hold mineral above a feeding basin and rely on gravity to meter product into a protected trough.
Automatic dispensers use timers or programmed gates to release measured portions at intervals for controlled intake.
Ground tubs are simple, low‑cost containers placed at ground level with minimal weather protection.
Polyethylene tubs are molded HDPE containers designed for UV resistance and reduced corrosion risk.
Block holders secure mineral or salt blocks under partial covers to limit rain contact.
55‑gallon drum conversions repurpose barrels into horizontal hoppers with added roofs and screened drains.
IBC tote conversions offer high capacity and are often fitted with chutes and raised frames for gravity feed.
| Feeder Type | Capacity (lb) | Weatherproof Features | Typical Cost | Expected Lifespan (yrs) |
|---|---|---|---|---|
| Gravity hopper | 50–500 | Roof, internal baffles, gasketed lid | $200–$1,200 | 7–12 |
| Automatic dispenser | 25–200 | Sealed compartments, timed gates | $300–$1,500 | 5–12 |
| Ground tub | 25–300 | Simple lip, limited cover | $60–$400 | 5–10 |
| Block holder | 10–50 | Partial roof, elevated base | $60–$200 | 5–10 |
| 55‑gal drum conversion | 100–200+ | Hinged lid, 3:12 roof pitch, screened drain | $60–$300 | 5–10 |
| IBC tote conversion | 300–600+ | Chute with rain lip, sealed fittings, raised frame | $100–$600 | 7–12 |
| Stainless bulk hopper | 300–1,200+ | Full roof, neoprene seals, stainless fasteners | $1,000–$3,000+ | 20+ |
- Gravity hopper: strong weather resistance when roofed, moderate maintenance, common failure points are clogged outlets and rusted fasteners.
- Automatic dispenser: precise intake control, higher cost and service needs, electronics vulnerable to moisture.
- Ground tub: lowest upfront cost, highest exposure to moisture and contamination, frequent cleaning required.
- Block holder: simple and durable, limited capacity and vulnerable to direct rain if unroofed.
- Polyethylene tub: excellent corrosion resistance and low maintenance, can degrade under extreme UV if not stabilized.
- 55‑gal drum conversion: cost‑effective mid capacity, common failure points are cut‑edge abrasion and poor sealing at access points.
- IBC tote conversion: high capacity and economical, fittings and seals are critical failure points without proper weatherproofing.
- Stainless bulk hopper: best long‑term durability and low maintenance, highest upfront cost and heavier installation needs.
Selection rules for breeders: small herds favor tubs or bucket/block feeders for low cost and easy placement.
Medium herds match well with 55‑gal drums or mid‑size gravity hoppers that balance capacity and weatherproofing.
Large herds require IBC conversions, 300–500 lb hoppers or commercial stainless bulk systems when long life and low maintenance justify higher investment.
Choosing Commercial Weatherproof Mineral Feeders for Cattle
Commercial units should be judged on mechanical weatherproofing and corrosion resistance first.
Look for full roofs or 6–12 in. overhangs, neoprene or EPDM lid gaskets, raised bowls with screened drain ports, a lid pitch around 3:12 (≈14°) to shed water, and 304 stainless fasteners for all exposed joins.
Price bands and warranty vary with material and finish; small HDPE tubs commonly retail $150–$400, mid galvanized units $400–$1,200, and large stainless or roofed systems $1,000–$3,000+.
Warranties run about 1–5 years and thicker metal or powder coating typically increases upfront cost by 10–40% while extending service life.
- Calculate per‑head daily intake and multiply by herd size to set required capacity.
- Confirm roof coverage equals 6–12 in. overhang on all exposed sides.
- Verify lid gasket material is neoprene or EPDM.
- Confirm main material grade (UV HDPE, galvanized steel, or 304 stainless).
- Check fasteners are 304 stainless or equivalent corrosion resistant grade.
- Verify drain ports are screened to keep pests out.
- Confirm minimum lid pitch ≈3:12 for effective runoff.
- Review mounting and anchoring options for concrete pad or bolt pattern.
- Check warranty length and what it covers (parts, finish, structural).
- Verify availability of replacement parts and service support.
| Feature | Why it matters | Recommended spec |
|---|---|---|
| Roof overhang | Sheds rain away from feed and walls | 6–12 in. on all sides |
| Gasket type | Stops moisture ingress at access points | Neoprene or EPDM |
| Material grade | Determines corrosion resistance and life | UV HDPE, galvanized 14–18 ga, 304 stainless |
| Fastener type | Prevents rusted joints and structural failure | 304 stainless bolts/screws |
| Recommended feeder height | Animal access and reduced ground moisture | 18–24 in. rim for mature cattle |
When a buyer needs long service life, minimal maintenance and consistent, rated capacity, a commercial weatherproof unit is more practical than a light DIY fix.
For those preferring a ready‑made premium option, confirm the model capacity fits herd needs before purchase: https://www.amazon.com/dp/B0FLWKK4RG.
DIY Mineral Feeders for Cattle: Weatherproof Builds and Materials
This section presents three practical DIY feeder plans—small, medium and bulk—with materials, tools, step sequences and weatherproofing notes for competent farm DIYers.
Plans scale from a 25–40 lb bucket feeder to a 100–200+ lb 55‑gal drum and a 300–600+ lb IBC tote conversion, with cost and time estimates to match herd needs.
Small bucket/block feeder plan
A compact option for small herds or as a secondary station; quick build and low cost.
- Mark a dispense slot 2–4 inches wide centered 2–3 inches from the bucket bottom.
- Cut slot with a jigsaw and file edges smooth.
- Attach a 10–12 inch PVC chute into the slot to control flow; glue and screw with stainless fasteners.
- Mount the lid on rear edge with two hinges placed 2–3 inches from each side for clearance.
- Add a rubber or neoprene edge strip around cut edges to remove sharp points.
- Drill two 1/4‑inch screened drain holes near the base, opposite the chute, to prevent pooling.
- Install a latch or padlock hasp to keep wildlife out.
- Set bucket rim 6–12 inches above ground on treated timber or a simple elevating stand.
- 5‑gal food‑grade bucket (1)
- 1" PVC short chute (1, 10–12 in.)
- 2 hinges, stainless screws (8)
- Neoprene edge strip (1 ft)
- Stainless fasteners, 1/4 in. screened mesh (8 screws + mesh)
- Rubber latch/hasp (1)
- Drill bits and jigsaw blades (as needed)
- Estimated cost/time: $20–$50, 30–90 minutes
55‑gallon drum hopper plan
Mid-capacity feeder using an HDPE drum mounted horizontally; suited for medium herds and paddock stations.
- Clean and inspect drum; select sound used drum.
- Mark an access mouth starting 12–18 inches from the bottom along barrel length, 20–24 inches long.
- Cut mouth with jigsaw; deburr and rivet a galvanized lip to protect edges.
- Fit a hinged lid over the cut with a 3:12 pitch small metal roof attached to two short roof supports.
- Mount drum on two saddles or timber posts spaced at drum quarter points so rim is 12–18 inches high.
- Seal lid and seams with marine‑grade silicone or polyurethane sealant.
- Install two screened vents near the drum top, protected by small flashing hoods.
- Add a 3–4 inch overhang on the roof around all exposed sides.
- Secure drum to saddles with 3/8‑inch stainless bolts and locking washers.
- Test flow and adjust chute length to prevent bridging.
| Material | Qty | Est. Cost |
|---|---|---|
| 55‑gal HDPE drum | 1 | $40–$100 |
| Galvanized flashing/roof | 1 set | $20–$60 |
| Hinges & stainless fasteners | 1 kit | $15–$40 |
| Marine silicone sealant | 1 tube | $8–$20 |
| Screened vents | 2 | $5–$15 |
| Treated posts/saddles | 2–4 | $20–$60 |
IBC tote conversion summary
A high‑capacity option for large herds; requires cutting tools, fittings and a raised steel or timber frame.
Materials list (6 items): IBC tote, gravity chute fitting, galvanized roof panel, marine sealant, stainless bolts, raised frame materials.
Estimated build time: 3–8 hours depending on frame fabrication and fittings.
- Neoprene gasket under lid
- 3–6 inch roof overhang on all sides
- Raised base 6–12 inches to prevent ground moisture ingress
- EPDM or marine‑grade sealant on all seams
- Stainless (304) fasteners for exposed joins
- Screened ventilation ports high on the hopper
Weatherproofing Fixes and Retrofits for Existing Mineral Feeders for Cattle
Start with a condition‑based triage: repair seals and leaking points first, then add small roofing or drainage upgrades, and reserve structural or material upgrades for feeders with repeated failure or heavy corrosion.
Site inspection should target moisture entry paths, fastener corrosion and internal bridging.
Use this evidence to rank interventions by cost‑to‑life extension and to avoid unnecessary full replacements.
A practical retrofit package for most feeders includes a pitched lid with a minimum 3:12 slope, a 3–6 inch overhang, a compatible gasket at the access point, polyurethane or marine silicone seam sealant, screened drain ports, and stainless fasteners.
Corrosion problems require surface treatment or part replacement; paint or powder coat exposed steel and swap in 304 stainless bolts and hinges to materially extend service life.
- Replace lid gasket and reseal seams — $30–$100; life +1–2 years
- Install screened drain holes and mesh — $20–$60; life +1–2 years
- Fit small metal roof / 3–6" overhang — $50–$300; life +2–4 years
- Add desiccant pouches and screened vents — $10–$50; life +1–3 years
- Edge protection and deburring of cut openings — $20–$80; life +1–2 years
- Replace fasteners with 304 stainless hardware — $40–$150; life +3–7 years
- Powder coat or galvanize exposed steel parts — $150–$600; life +5–10 years
- Raise feeder on treated frame or concrete pad — $200–$800; life +3–8 years
- Full stainless retrofit or replace with commercial unit — $800–$3,000+; life +10–20+ years
| Problem | Quick Fix | Materials | Est. Cost |
|---|---|---|---|
| Caking | Add pitched lid, overhang, screened drain and desiccant | Flashing roof, neoprene gasket, marine silicone, desiccant | $50–$300 |
| Lid leaks | Replace gasket and reseal lid perimeter | EPDM/neoprene gasket, polyurethane/marine sealant, new hinges | $30–$100 |
| Rusting hinges | Swap to stainless hinges and coat exposed metal | 304 stainless hinges/bolts, powder coat or paint | $50–$300 |
| Water pooling under feeder | Raise feeder or install compacted gravel/concrete pad | Treated timber or concrete, gravel base, anchor bolts | $100–$800 |
| Frozen blocks | Raise unit, add insulation under lid, relocate to sunnier spot | Insulation wrap, raised frame, desiccant | $30–$200 |
| Rodent entry | Fit lockable lid and mesh vents | Padlock hasp, hardware cloth, stainless fasteners | $20–$150 |
Confirm retrofit success by inspecting the feeder after the next heavy rain for standing water and by monitoring product flow for caking over the following 2–4 weeks.
Perform a follow‑up check of seals, hinge function and fastener tightness monthly to validate durability.
Installation, Placement and Herd Capacity for Mineral Feeders for Cattle
Placement prioritizes drainage, animal traffic and shelter from prevailing wind and driving rain.
Locate feeders close to water and routine gathering points to centralize use and cut travel time for cattle.
Install on level, compacted ground or a concrete pad sloped away from the unit to prevent standing water and rapid product deterioration.
Set rim heights for the animal class: mature cattle 18–24 in, yearlings 12–18 in and calves 6–12 in.
Specify trough depth 10–12 in and allocate 18–24 in linear space per mature animal during peak feeding.
For block feeders plan roughly 1 unit per 10–20 head, and for loose mineral plan 1 feeder per 20–30 head with extra access points or additional feeders when herds exceed 50 head.
- Near water source to reduce travel time and concentrate traffic
- Windbreak or natural shelter on the windward side to cut wind‑driven moisture
- High‑traffic gathering area to encourage use and reduce trampling elsewhere
- Level, well‑draining pad or compacted gravel base to avoid pooling
- Minimum 3 ft clear approach and back clearance for multiple animals
- South or sun‑exposed placement to reduce freeze risk in winter
- Anchor options visible and unobstructed for installation access
| Herd size | Recommended feeder type | # of feeders | Example refill interval |
|---|---|---|---|
| 10 cows | Block holder or 50 lb tub | 1 | ≈40–160 days for a 50 lb feeder (0.5–2 oz/head/day) |
| 50 cows | 250 lb gravity hopper or 55‑gal drum | 2 | ≈40–160 days per 250 lb hopper (0.5–2 oz/head/day) |
| 200 cows | 500 lb commercial hopper or multiple IBCs | 6 (approx) | ≈20–80 days per 500 lb hopper (0.5–2 oz/head/day) |
Anchor feeders to a concrete pad or compacted gravel base sized to feeder class.
Small pads: 4 in slab, 3 ft × 3 ft, 6 in gravel subbase.
Bulk feeders require 6 in slab or isolated footings (12–18 in deep).
Use 3/8 in stainless anchor bolts with washers and set pad slope ≈1/8 in per ft away from feeder for drainage.
Animal Safety, Access and Minimizing Waste at Mineral Feeders for Cattle
Round or fully cover any sharp edges and burrs to prevent muzzle and tongue lacerations.
Use bolted or welded supports rather than nails or protruding fasteners that can back out and injure animals.
Design openings to avoid vertical gaps that trap hooves; keep openings larger than 6 inches or smaller than 2 inches.
Fit lockable lids or heavy latches to block pigs, dogs and wildlife from contaminating mineral stores.
- Rounded lips on troughs
- Countersunk or capped fasteners
- Anti‑siphon mud guards at trough base
- Internal baffles to slow access and reduce wind loss
- Controlled‑flow dispensers to prevent overconsumption
- Locking lids or hasps for pest control
- Multiple access points to reduce competition
- Low‑profile feeder designs for shy animals
- Use only non‑toxic sealants where feed contacts surfaces
- Scheduled cleaning to remove caked or moldy product
Provide 8–12 inches horizontal access width per animal at a mineral station and 18–24 inches linear trough space per mature animal during peak feeding.
Place low‑profile units or multi‑sided feeders where timid animals are present so subordinate cattle can feed without direct confrontation.
Stagger feeder positions and add units before herd size exceeds recommended access capacity to cut monopolizing behavior.
Daily intake guidance: plain salt 1–4 oz/head, trace mineral salts 0.5–1.5 oz/head, loose mineral 0.5–2 oz/head.
Refill interval formula: Feeder days = (Feeder weight in ounces) ÷ (Herd daily consumption in ounces).
Worked example: 250 lb hopper = 4,000 oz.
50 head × 1 oz/day = 50 oz/day herd use.
Feeder days = 4,000 ÷ 50 = 80 days.
- Add a second feeder to split dominant groups
- Move feeders to a neutral area away from gates or loafing spots
- Introduce feeders gradually so shy animals learn access routines
- Swap to low‑profile or multi‑sided designs to reduce bullying
Winter and Freeze‑Proof Strategies for Mineral Feeders for Cattle
Winter brings freeze–thaw cycles that cake loose minerals into unusable masses and create hard blocks that stop flow.
Condensation under tight lids and standing water at feeder bases encourage microbial growth and reduce palatability, and snow or ice contact limits animal access and increases handling time.
Insulated or ventilated enclosures prevent repeated freeze–thaw and reduce internal moisture accumulation.
Raising feeders off snowpack, leaving a 1–2 inch ventilated gap under lids and adding screened vents with desiccant pouches reduces caking and internal dampness.
Heater bands can keep bin outlets workable but require correct sizing, circuit protection and monitored installation to avoid electrical hazards.
Strategic placement in sun‑exposed, sheltered locations plus reflective lid wraps and more frequent refills are low‑cost tactics that preserve mineral usability.
- Insulated lid wrap for top‑side heat retention
- Raised mounting 6–12 inches to avoid snow and ice contact
- Screened vents near the top to vent moisture without admitting rain
- Desiccant packs in a screened pouch to absorb trapped humidity
- Relocate feeders to sunnier, wind‑sheltered spots when possible
- Small heater band with GFCI protection and proper thermostat (safety checked)
- Heated salt holders for blocks in high‑use stations
- Increase refill frequency during freeze spells to prevent solidification
| Strategy | Notes/Safety |
|---|---|
| Heater band use | Check heater wattage, circuit capacity and require GFCI; monitor thermostat and wiring condition. |
| Insulation wraps | Use feed‑safe insulation; avoid sealing so tightly that moisture is trapped and condensation increases. |
| Raised platforms | Elevate 6–12 in.; secure to prevent tipping and allow drainage under feeder. |
| Relocate to sunny spot | Reduces freeze risk; confirm roof overhang or UV‑stable materials to limit sun degradation. |
| Desiccants | Place in screened pouch away from direct feed; replace seasonally or when saturated. |
Consult a licensed electrician or follow the product manual before installing powered heaters, and inspect feeders after the first winter storms to confirm freeze risk has been reduced.
1 Mineral Feeders for Cattle: Weatherproof Options and DIY Fixes Reliable
A concise maintenance cadence prevents small weather‑related failures from becoming costly replacements.
Inspect seals, hinges and fasteners monthly and perform a weekly visual check for standing water, caking or missing hardware.
Deep clean annually and replace gaskets or cracked plastic yearly in high UV exposure to preserve feed quality and predictable intake.
- Weekly: visual inspection for standing water, caking or pest activity.
- Monthly: tighten fasteners, check hinges and test lid latching.
- Monthly: inspect seals and gasket compression; reseal if gaps appear.
- Every 2–6 weeks: remove caked mineral and scrub troughs (more often in wet conditions).
- Quarterly: check screened drains and vents for blockages.
- Annually: deep clean entire hopper and inspect internal baffles.
- Annually: replace worn gaskets and reseal lid per manufacturer spec.
- Yearly in high UV areas: inspect plastic for cracking; replace if brittle.
- Every 3–5 years: repaint or recoat exposed metal surfaces or powder coat as needed.
- As‑needed: test anchor points and concrete pad condition after severe weather.
| Problem | Likely cause | Immediate fix | Est. Cost (USD) |
|---|---|---|---|
| Caking | Moisture ingress or condensation | Add pitched lid/overhang, screened drain, desiccant | $50–$300 |
| Tipping | Unstable base or animal leverage | Anchor to concrete pad or widen base and add 2–4 anchors | $100–$800 |
| Corrosion | Exposed untreated metal or failed coating | Replace fasteners with 304 stainless, powder coat or paint | $40–$600 |
| Frozen block | Freeze–thaw exposure and trapped moisture | Raise unit, add insulation, relocate to sunny spot or use heater band | $30–$300 |
| Animal avoidance | Palatability, wet product or dirty feeder | Clean feeder, check formulation, relocate or add second station | $0–$200 |
| Rodent contamination | Unsecured lids or vent openings | Install lockable lid, mesh vents and desiccant pouches | $20–$150 |
Cost comparisons clarify lifecycle tradeoffs for practical decisions.
- Small DIY: bucket/block feeder — $20–$50 upfront; service life 2–6 years with routine maintenance.
- Mid DIY/commercial: 55‑gal drum or mid gravity hopper — $60–$600 upfront; expected life 5–12 years depending on materials and retrofits.
- Premium commercial: roofed stainless or purpose‑built HDPE unit — $1,000–$3,000+ upfront; 10–20+ year life and lower annual maintenance; pragmatic choice for breeders prioritizing low maintenance and long service life — confirm capacity before purchase: https://www.amazon.com/dp/B0FLWKK4RG.
Final Words
In the field, the guide focused on why weatherproof mineral feeders matter, compared feeder types and materials, presented commercial buying criteria, three DIY builds, retrofit fixes, placement and height rules, safety and winter tactics, and a clear maintenance schedule.
The practical takeaway: prioritize UV‑stable materials, gasketed lids, raised bases and screened drains to cut caking, contamination and refill frequency, stabilizing intake and lowering health-related costs.
Reference Mineral Feeders for Cattle: Weatherproof Options and DIY Fixes when choosing builds or commercial units; following the guide's steps will prolong feeder life and support consistent herd nutrition.
Related Articles
Our Recommended Feeders
Looking for a quality hay feeder? Goatzy offers durable, weather-resistant feeders designed for goats, sheep, and horses:
- Large Hay Feeder with Roof & Wheels — Keeps hay dry and clean, reduces waste by up to 60%. Ideal for 2–6 animals.
- Wall Mount Hay Feeder with Roof — Space-saving wall-mounted design, perfect for smaller pens and stalls.
- Goat Stand with Adjustable Headpiece — Adjustable legs and headpiece for comfortable milking and grooming.
All products ship from the US and come with a satisfaction guarantee. View all products →
FAQ
Q: Best mineral feeders for cattle weatherproof options and DIY fixes?
Commercial options are UV‑stabilized HDPE tubs or powder‑coated/stainless hoppers with sealed lids and 3–6" overhangs. DIY fixes: add neoprene gasket, sloped lid, raised base and screened drain.
Q: DIY mineral feeder for cattle, goats or sheep?
A simple plan uses a 5‑gal food‑grade bucket, 1" PVC chute, stainless screws and neoprene gasket. Mount at class‑appropriate heights; build 30–90 minutes; cost $20–$50.
Q: Loose mineral feeder for cattle — can cattle mineral get wet?
Loose mineral must stay dry to avoid caking, mold and intake variability. Use sealed hoppers, internal baffles, raised drainage and covered dispensers to prevent wetting.
Q: Used mineral feeders for cattle — weatherproof options and DIY retrofits?
Used feeders are salvageable by replacing fasteners with 304 stainless, powder‑coating exposed steel, and adding a sloped roof and gasketed lid. Retrofit costs typically $30–$300.
Q: Sheep mineral feeder DIY and DIY feeder for goats covered above?
Small ruminant DIY follows the same bucket‑chute design with lower mounting heights. Adjust rim height and access width for sheep and goats to prevent competition and waste.
Q: What is a Sydell Mineral Feeder and is it suitable?
Sydell makes commercial roofed mineral feeders using durable materials and sealed lids. Select model by capacity and material to match herd size and exposure.
Q: What is the best mineral for cattle in winter?
Use a complete trace‑mineral formulation containing selenium and copper that matches forage test results and veterinary guidance. Consider supplemental magnesium if grass tetany risk exists.
Q: How to make a rain‑proof bird feeder (applicable methods for small feeders)?
Add a sloped roof with 3–6" overhang, gasketed seams, drainage holes and raised mounting. Use UV‑stable metal or plastic and seal joints with marine silicone.
Q: What is the free‑choice mineral system?
A free‑choice system provides ad lib mineral access via sheltered feeders placed near water and traffic. Plan feeder density (1 per 10–30 head) and monitor consumption for adjustments.
