Cow Hay Feeder Setup Halves Trampling and Waste
Could ground feeding be wasting half a bale before cows even take a bite? A planned hay feeder setup cuts visible ground loss roughly 50 percent, commonly halving trampling and reducing feed cost per cow 10–30 percent. By matching feeder type, spacing, and hardstanding to herd size, farmers can reduce hay waste, stop trampling cattle, and raise cattle feeding efficiency within months. Example: a 4x5 bale fed to six cows over five days will show roughly half the visible ground leftover after switching from ground feeding to a well-anchored ring or slow-feeder, cutting bale consumption and lowering feed bills.
Related reading: building a bale feeding area that stays dry | cattle hay feeder durability guide

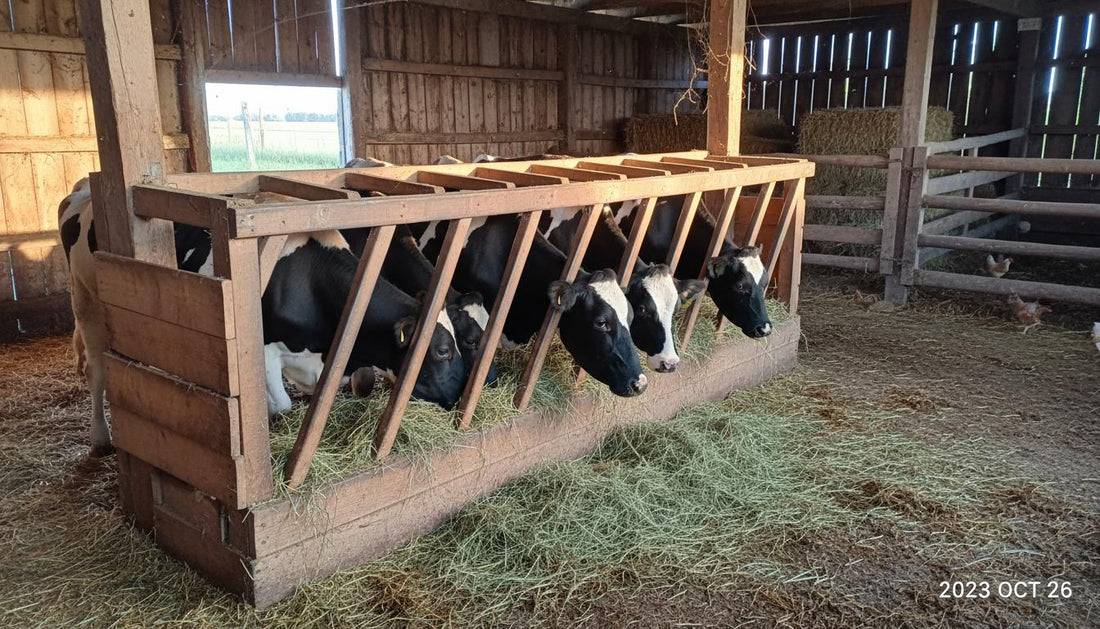

5 Cow Hay Feeder Setup: Halve Trampling, Waste
Ground feeding typically produces very high visible losses, often in the 40–100% range when weather and trampling are factored in.
A proper hay feeder setup cuts that visible loss by roughly 30–60%, with well-designed slow-feeders and rings commonly near 50% waste reduction.
Producers who stop ground feeding see less trampling and lower labor for cleanup, and an immediate ability to reduce purchased hay through waste control.
- Typical waste when feeding on ground: 40–100% visible loss depending on weather and trampling.
- Typical waste with a good feeder: 30–60% reduction; often near 50% versus ground feeding.
- Impact on feed cost per cow: reported 10–30% savings from reduced waste and improved intake control.
- Bale and herd effects: a 4x5 ft round bale (~800–1,200 lb) generally feeds 4–8 mature cows for several days; larger herds or longer feed periods change feeder count and pad sizing needs.
Use a clear example to quantify impact: assume a 4x5 bale at 1,000 lb fed to six cows for five days.
If ground feeding yields 40% visible waste, 400 lb is lost and 600 lb is available.
Halving that visible waste to 20% leaves 200 lb wasted and 800 lb available — a net gain of 200 lb, or 20% more usable hay from the same bale.
That saved hay approximates the reported 10–30% reduction in feed cost per cow and demonstrates how switching from ground feeding can stop trampling cattle and boost cattle feeding efficiency.
Cow Hay Feeder Setup: Choose the right feeder type to stop trampling and cut waste in half
Feeder selection depends on herd size, budget, and whether the priority is maximum waste reduction or simple, low-cost deployment.
Smaller operations can get by with low-cost rings that install quickly and reduce trampling compared with ground feeding.
Larger herds or producers targeting maximum bale utilization should prioritize sheeted-bottom or slow-feeder designs that retain loose hay and slow extraction.
- Ring feeder — best low-cost option; $200–$800; quick assembly 1–3 hours; trade-off: higher trampling and late-bale loss.
- Sheeted-bottom feeder — best for waste control late in the bale; research shows about 39% reduction vs open designs.
- Cradle/cone slow-feeder — best for slowing intake; reported 40–60% waste reduction and reduced head-pulling.
- Headlock/lock-up systems — best for large herds and controlled access; $1,000–$3,000+ and requires strong anchoring.
- Buy vs build checklist — evaluate materials on hand, welding tools, moveability needs, labor available, and long-term corrosion resistance.
| Feeder Type | Typical Cost Range | Typical Waste Reduction | Best Use |
|---|---|---|---|
| Ring | $200–$800 | ~30–50% (vs ground) | Low-cost, quick deployment |
| Sheeted-bottom | $800–$2,500+ | ~39% vs open; down to ≈12% late-bale | Maximizing bale utilization, permanent sites |
| Cradle / Cone | $400–$2,000 | ~40–60% | Slow feeding, intake control |
| Headlock / Bunk | $1,000–$3,000+ | Varies with design | Large herds, controlled access |
Assembly time examples: rings typically take 1–3 hours, framed feeders 4–12 hours, and sheeted-bottom commercial units 1–4 hours plus anchoring work.
When durability and quick procurement are priorities, a ready-made, galvanized commercial feeder is often the most practical choice.
A premium option with heavy galvanized construction is available for immediate purchase: https://www.amazon.com/dp/B0FLWKK4RG
Sheeted-bottom vs open-design feeders
Sheeted-bottom units hold collapsing bale material and reduce late-bale losses significantly.
Research-cited figures place waste reduction around 39% when compared with open rings, making them effective where full bale utilization matters.
- Sheeted-bottom: retains loose hay during bale collapse.
- Sheeted-bottom: higher upfront cost and need for anchoring.
- Open ring: low initial cost and simple installation.
- Open ring: more visible hay on the ground late in feed cycle.
- Sheeted-bottom: easier cleanup and less frequent spoilage removal.
- Open ring: portable and simple to move between sites.
Cow Hay Feeder Setup: How to size and space feeders to stop trampling and cut waste
Correct sizing and spacing remove crowding that causes trampling and selective consumption.
Design rules translate directly to less mud, fewer spoiled flakes, and steadier intake across the herd.
Precise feed-space and pad planning determines whether subordinate animals get access without forcing the group to fight for hay.
Slat and slot dimensions control how much hay an animal can extract at once.
Narrower slat gaps reduce pull-through and visible loss, while wider linear access reduces competition and trampling at the rail.
Balancing slot width with feed-space per cow yields steady feeding rates and lower waste.
- Feed rail height: 42–48 in for bunks; bottom-rail clearance 18–24 in above ground.
- Slat spacing: 6–8 in between vertical slats or rails to limit large hay pulls.
- Linear space per cow: 18–24 in routine; 24–30 in for high-competition herds.
- Feeder count rule: 1 feeder per 10–20 cows (adjust for herd dynamics).
- Spacing between feeders: 50–100 ft to prevent crowding and allow multiple access points.
- Feed alley width: 10–12 ft for tractor access; 6–12 ft working area for people and cattle.
- Hardstanding pad size: minimum 10×10 ft per feeder ring; increase for high-traffic sites.
- Consider bale size: match feeder diameter to 4-ft or 5-ft bales to avoid overhang and trampling.
For a practical example, a 30-cow group requires 45–60 ft of linear bunk space when following the 18–24 in guideline.
Calculation: 30 cows × 18 in = 540 in (45 ft); 30 cows × 24 in = 720 in (60 ft).
That means 2–3 standard bunk runs or 2–3 ring feeders depending on feeder type and expected intake duration.
| Herd Size | Suggested Feeder Count | Suggested Feed Space per Cow |
|---|---|---|
| 10 cows | 1 feeder | 18–24 in |
| 20 cows | 1–2 feeders | 18–24 in |
| 50 cows | 3–5 feeders | 18–24 in (24–30 in if dominant animals present) |
| 100 cows | 5–10 feeders | 24 in target per cow |
Cow Hay Feeder Setup: Ground prep, pads, and low-cost mat solutions to stop trampling
A stable feeding surface reduces trampling and visible waste immediately by keeping hay off mud and limiting bale collapse against soft ground.
Prepare a 10–12 ft wide feed alley with a compacted sub-base and 4–6 in of 3/4 in crushed rock placed over geotextile fabric, or use a 4-in concrete slab for permanent sites.
Material-only rock costs run roughly $30–$60 per cubic yard; a 10×10 ft pad at 4 in depth is about 1.23 cu yd and at 6 in is about 1.85 cu yd, giving a material cost range near $37–$111 by yardage math, though typical small gravel pad estimates fall between $200–$600 installed depending on haul and local screening fees.
Concrete pad installation commonly ranges $800–$1,800 for a similarly sized 10×10 ft slab.
- Site selection: pick level, well-drained ground away from low spots.
- Sub-base compaction: remove topsoil and compact native material 4–6 in.
- Geotextile fabric: lay fabric to separate sub-base from rock and slow migration.
- Rock depth: place 4–6 in of 3/4 in crushed rock; compact in 2-inch lifts.
- Edge restraint: install timbers, pavers, or metal edging to hold rock.
- Drainage slope: grade 1–2% away from feeder for runoff.
- Pallets (48×40 in): pros — very cheap; cons — limited lifespan and uneven surface.
- Rubber mats: pros — quick comfort and traction; cons — moderate cost, may need topping.
- Recycled concrete fines (2–4 in): pros — budget, compacts well; cons — dust and variability.
- Use existing laneways: pros — low excavation; cons — may require added drainage.
| Option | Material Depth | Typical Installed Cost Range | Time to Install |
|---|---|---|---|
| Gravel pad | 4–6 in crushed rock over geotextile | $200–$600 (small pad) | Half day to 1 day |
| Concrete pad | 4 in slab | $800–$1,800 installed | 2–4 days (forms, pour, cure) |
| Pallet / rubber mat solution | Raised platform / 1–2 in mat | <$50–$200 | 30–90 minutes |
Quick temporary pad: Pallets and mats
- Lay two or three 48×40 in pallets side-by-side on firm ground and check for level.
- Trim or shim pallets where needed to remove major gaps and rocking.
- Overlap pallets slightly and secure with screws or ratchet straps for stability.
- Place a rubber mat or landscape fabric over pallets to protect hay and add footing.
- Reposition the temporary pad every 1–2 weeks to protect pasture and avoid rutting.
Cow Hay Feeder Setup: Anchoring and installation practices to stop tipping and trampling
Anchoring determines whether a feeder stands up to cow pressure or becomes a tipping hazard.
Set 4x4 treated posts or T-posts 2–3 ft into the ground with concrete for permanent installations, and use auger or screw anchors for portable panels.
Pipe rings should be built from 2–3 in galvanized pipe and restrained with 3/8 in chain or 4x4 posts to resist lateral loads from animals.
- Concrete-set posts (4x4 treated or T-posts set 2–3 ft deep in concrete)
- Screw/auger anchors (fast, re-usable for portable panels)
- Driven auger anchors with plate heads (for high pull-out resistance)
- Welded base plates bolted to concrete pads (permanent ring mounting)
- Chained-to-weights or earth anchors (temporary heavy restraint)
- Skid frames for tractor mounting (moveable, resists tipping when hitched)
Inspect anchors monthly and after any heavy use event.
Check for leaning posts, loose or missing bolts, ring movement when pushed, and soil heave around footings as primary failure signs.
For portable systems, welded cattle panels with quick-set posts let teams move a ring and gravel pad every 1–2 weeks; expect build costs of $100–$400 and move time of 30–60 minutes with 2–3 people.
Finish and cap all exposed pipe ends, deburr cut metal, and remove snag points to reduce injury risk and prevent entanglement.
Cow Hay Feeder Setup: Slot heights, rail spacing, and safety features to stop trampling
Proper slot heights and rail spacing control how much hay cattle can pull and reduce trampling-related loss.
Set vertical slat gaps at 6–8 in to allow comfortable head access while limiting large hay grabs.
Place slats or rails so the feeding opening sits 36–48 in high overall, with the principal feed rail at 42–48 in and the bottom-rail clearance 18–24 in above ground.
Safety features cut injury risk and reduce entanglement that creates waste.
Use smooth, rounded top rails and deburred edges to remove snags.
Provide a removable bottom or sheeted pan for cleaning, and fit a bottom skirt roughly 6–8 in above the surface to stop hay being dragged out underneath.
For stocking guidance, a 1,200 lb cow herd should target 24 in feed space per cow to lower competition and trampling.
Installers should follow a short measurement checklist and inspection rhythm.
Verify rail heights and slat spacing with a tape and level before fastening.
Check anchors and welds monthly and examine for sharp wire, exposed nails, or sagging rails after heavy use.
- Slat spacing: set 6–8 in between vertical slats or rails.
- Top rail smoothness: use rounded rails, no sharp welds or burrs.
- Bottom skirt height: 6–8 in above ground to prevent under-pulling.
- Headspace clearance: overall slat height 36–48 in; feed rail 42–48 in.
- Rounded edges: deburr and cap cut pipe ends at head height.
- Removable bottom for cleaning: allows easy removal of spoiled hay.
- Locking anchors: posts or base plates set 2–3 ft deep or bolted to pad.
| Feature | Recommended Dimension | Reason |
|---|---|---|
| Slat spacing | 6–8 in | Limits large hay pulls while allowing head access |
| Bottom skirt height | 6–8 in above ground | Prevents hay being dragged under feeder |
| Feed rail height | 42–48 in | Comfortable posture for mature cows, reduces stepping in feeder |
| Top rail diameter | 2–3 in rounded rail | Reduces head/neck injury and snag points |
| Pad depth | 4–6 in crushed rock over geotextile | Stable footing, reduces mud and trampling |
| Access space per cow | 18–24 in routine; 24 in target for heavy competition | Reduces monopolization and trampling at the rail |
Cow Hay Feeder Setup: Feeding management and cattle behavior tips to cut waste in half
Consistent routines reduce panic feeding and the trampling that follows.
Feeding once or twice daily at set times steadies intake and lowers frantic competition.
Dispersing hay across multiple locations prevents crowding and reduces localized trampling damage.
- Set a fixed feeding schedule (same times daily) to calm the herd and limit rushes.
- Spread hay across 2–4 feeding locations for larger herds so groups can feed without crowding.
- Measure and provide 1.2–2.0 feeding spaces per cow, targeting 24 in per cow where competition is likely.
- Use slow-feeders or hay nets to slow extraction; expect 40–60% waste reduction in high-loss herds.
- Monitor dominant animals and separate or gate them during feeding when they monopolize access.
- Rotate feed spots and move portable pads every 1–2 weeks to prevent rutting and mud buildup.
- Inspect cattle and visible waste daily, recording intake and leftover hay after each feeding.
Daily routine example for a 50-cow herd: schedule two feedings, place hay across three feeders, and check visible waste after each feeding.
Provide roughly 100 ft of linear access when targeting 24 in per cow, split across the three feeders to keep subordinate animals fed.
Record weight or estimated leftover on three consecutive feedings to detect trends quickly.
Train cattle to a new feeder over 5–10 days: start by offering familiar hay at the usual spot while placing a small portion in the new feeder.
Increase the proportion in the new feeder over days 3–7, observe for hesitation or tangling, and adjust net mesh or rail height as needed.
Use the 40–60% slow-feeder statistic to prioritize slow-feeder adoption where visible waste and trampling remain high.
Cow Hay Feeder Setup: Maintenance, measuring waste, and calculating savings
A concise maintenance rhythm preserves feeder function and maintains the waste-reduction benefit over time.
Daily visual checks during feeding catch loose fasteners, torn nets, and wet or spoiled hay before it becomes a safety or waste issue.
Monthly inspections should measure rail alignment, anchor movement, and corrosion at contact points.
An annual service day for tightening hardware, re-anchoring posts, and replacing worn skirts or mats limits progressive failure and expensive repairs.
- Inspect feeders visually during each feeding for loose bolts, torn mesh, snagged nets, or wet hay.
- Remove spoiled or wet hay every 1–3 days and clear the sheeted pan or removable bottom.
- Verify anchor tightness and post plumb monthly; look for soil heave or movement.
- Check welds and fasteners annually and torque bolts to spec or replace corroded hardware.
- Maintain bottom skirt and slat integrity; repair gaps that allow pull-through.
- Replace rubber mats or regrade gravel as needed during the season ($100–$500 typical).
- Deburr cut metal and cap pipe ends to remove snag points and reduce entanglement risk.
- Log maintenance actions and visible-waste observations for ROI tracking.
- Weigh a representative sample bale and record its dry weight as baseline.
- Over seven consecutive feedings, collect and weigh leftover hay plus visible ground loss to calculate percent waste.
- Implement feeder improvements (ring, slow-feeder, sheeted pan) and repeat the seven-feed trial to get post-installation waste percent.
- Apply percent reduction to annual hay spend to calculate savings and compare against feeder plus pad costs for simple ROI.
| Scenario | Annual Hay Cost | Waste Reduction | Estimated Annual Savings |
|---|---|---|---|
| Small herd | $2,000 | ~40% | $400–$800 |
| Medium herd | $5,000 | ~40% | $1,000–$1,500 |
| Large herd | $15,000 | ~40% | $3,000–$4,500 |
Daily maintenance typically takes 5–10 minutes per feeder, with monthly inspections 15–30 minutes and a yearly service block of a few hours.
Use the measured percent-waste reduction to amortize feeder and pad costs and present a simple payback period to stakeholders.
Cow Hay Feeder Setup: Build vs buy decision, costs, and time estimates with a premium buy option
Choosing between building and buying is a function of available materials, skills, time, and the desired service life.
DIY pallet feeders cost roughly $50–$300 and can be assembled in 1–3 hours using basic hand tools and fasteners.
Mid-range manufactured feeders sit at $300–$1,200 with 1–4 hours installation time and fewer fabrication steps.
Sheeted-bottom commercial units run $800–$2,500+ and frequently require anchoring work that adds installation time and cost.
When long-term corrosion resistance, certified welds, and galvanized components matter, buying a commercial feeder often becomes the most practical choice.
- Materials needed: lumber/pallets or metal panels and welded wire.
- Tools required: hand tools for pallet builds; welding gear for welded rings; hoist or loader for heavy commercial units.
- Moveability: pallets and light rings are portable; sheeted-bottom units are heavier and need anchors.
- Labor: 1–3 hours for pallet builds, 4–12 hours for framed welded feeders, 1–4 hours for commercial install plus anchoring.
- Lifespan: pallet builds short-term; welded or galvanized commercial feeders last years with less maintenance.
- Safety: professional fabrication reduces sharp edges, weak welds, and entanglement risks.
If the operation lacks welding equipment or a safe work area, purchase is recommended.
If a durable, galvanized commercial feeder with ready delivery is preferred, a premium option is available for quick procurement: https://www.amazon.com/dp/B0FLWKK4RG.
This option reduces on-site fabrication time and provides coated steel for longevity under heavy use.
| Option | Estimated Material Cost | Typical Build/Install Time | Durability Notes |
|---|---|---|---|
| DIY pallet feeder | $50–$300 | 1–3 hours | Low; short-term, vulnerable to rot |
| DIY welded ring | $100–$400 | 4–12 hours | Good if welded and hot-dip/gavanized; needs equipment |
| Mid-range manufactured | $300–$1,200 | 1–4 hours | Galvanized options available; moderate lifespan |
| Sheeted-bottom commercial | $800–$2,500+ | 1–4 hours + anchoring (pad work adds time) | Highest bale utilization and longevity when galvanized |
Cow Hay Feeder Setup: Troubleshooting common problems that keep trampling and waste high
Quick, observable checks let producers diagnose why trampling and visible hay loss remain high and apply fixes that use known dimensions and anchoring standards.
The numbered list below gives a problem, a rapid diagnosis step, and a specific corrective action with measurable specs.
- Muddy, trampled area around feeder — diagnosis: look for rutting and standing water after a few feedings; fix: expand hardstanding footprint 25–50% or add additional feeder locations; install 4–6 in crushed rock over geotextile.
- Cattle pulling hay out of rings — diagnosis: count loose hay on ground after feeding; fix: reduce slat gaps to ~6 in or fit a bottom skirt 6–8 in above ground.
- Ring or feeder tipping when pushed — diagnosis: physically push ring and check movement; fix: set posts or anchors 2–3 ft deep in concrete or use heavy-duty screw anchors.
- Excess spoilage from collapsed bales — diagnosis: find wet hay in pan or ground; fix: use sheeted bottom or removable pan and top cover to shed water.
- Animals snagging on metal or wire — diagnosis: watch for head catches or torn skin; fix: deburr edges, cap pipe ends, remove exposed nails/wire at head height.
- Dominant cows monopolizing feed — diagnosis: note uneven access during feeding; fix: add linear access or extra feeders so each cow has 18–24 in (24 in for high competition).
- Portable pad rutting quickly — diagnosis: pad degrades after one week; fix: move pad every 1–2 weeks (30–60 minutes with 2–3 people) or increase pad size.
- Corroded bases or failing welds — diagnosis: visible rust or cracks at joints; fix: replace with galvanized components or reinforce welds and brackets.
Producers should call a welder or contractor when welds are broken, bases are seriously rusted, feeders repeat tipping despite anchoring, post foundations crack, or structural repairs exceed routine maintenance.
Final Words
In the action, switching from ground-baled feeding to a planned feeder layout turns typical 40–100% visible loss into a 30–60% reduction in waste, often near 50%.
That change directly cuts trampling and visible hay on the ground.
Combining the right feeder type, correct spacing, anchors, and hardstanding delivers 10–30% lower feed cost per cow.
Example: a 4x5 bale feeding six cows for five days, with visible waste halved, saves about one-quarter of that bale versus ground feeding.
Adopting the steps above makes the Cow Hay Feeder Setup: Stop Trampling and Cut Waste in Half practical to implement, and results are achievable and encouraging.
Related Articles
Our Recommended Feeders
Looking for a quality hay feeder? Goatzy offers durable, weather-resistant feeders designed for goats, sheep, and horses:
- Large Hay Feeder with Roof & Wheels — Keeps hay dry and clean, reduces waste by up to 60%. Ideal for 2–6 animals.
- Wall Mount Hay Feeder with Roof — Space-saving wall-mounted design, perfect for smaller pens and stalls.
- Goat Stand with Adjustable Headpiece — Adjustable legs and headpiece for comfortable milking and grooming.
All products ship from the US and come with a satisfaction guarantee. View all products →
FAQ
Q: How can a cow hay feeder setup stop trampling and cut waste in half?
A well-anchored ring or slow-feeder typically halves visible hay waste by keeping bales off the ground and limiting large pulls; expect 30–60% waste reduction and 10–30% lower feed cost.
Q: How should producers feed round hay bales to cows?
Place a 4x5 round bale in a ring or slow-feeder on hardstanding, anchor securely, provide 18–24 in feed space per cow, and monitor intake and visible waste daily.
Q: How many bales of hay does a cow need for winter or per month?
A 4x5 bale (800–1,200 lb) feeds 4–8 cows for 3–10 days; plan roughly 1–2 round bales per cow per month, adjusting for intake, herd size, and measured waste.
Q: What are low-waste hay feeder ideas for goats?
A producer should use smaller ring feeders, raised troughs or hinged-lid boxes with narrow slat spacing (~3–4 in) to reduce trampling, bedding contamination, and selective sorting.
Q: What is one practical way to reduce field loss in hay?
Producers should cut and condition forage to speed drying, then bale promptly to minimize rain exposure; faster drying and quick baling reduce field loss significantly.
Q: Why are some cattle feeders slanted?
Slanted faces reduce head-pulling and large hay grabs, shed rain from the bale, improve feed access angles, and lower visible waste and competition at the rail.
Q: Can a cattle chute reduce animal stress during handling?
A well-designed chute reduces handling time, improves animal flow, lowers injury risk, and decreases stress by providing calm, controlled restraint during routine procedures.
